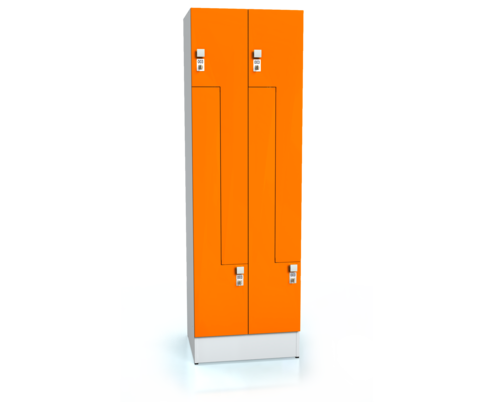

Premium lockers Z-shaped doors ALFORT AD 1920 x 600 x 520
Premium lockers Z-shaped doors with front-standing doors, socle h=160 mm, shelf, clothes bar + 3 plastic hooks
Premium cloakroom lockers with front-standing doors with a trade name ALFORT. These cloakroom lockers are characterized by modern and clear lines and a wide range of material and colour versions of doors panels. Due to all these characteristics the lockers can be used in modern interior architecture, especially at cloakrooms of hotels, wellness and fitness centres
or swimming pools.
Doors wings are made of steel plates and are standardly supplied in durable double-plated version. Doors are hinged on furniture pivots with damped closing function. Massive opening limiter is supplied standardly. Doors are fitted with an aluminium hold for better manipulation. The surface treatment is made by resistant powder coat.
The body is furnished with an efficient ventilation system which fulfil with a generous margin demands of DIN 4547 standard. Ventilation slots are cut in a safety section and they are placed into the horizontal body panels and on locker ́s back wall. To ensure the right function of ventilation please follow the installation instruction of the producer.
● Cylindrical lock C1, 4000 combinations, a master key option.
● Turning security padlock cap OB1 is intended for a padlock of stirrup diameter 6 - 8 mm.
Locking system consists of a bolt with a safety hook which increases the resistance of the doors against violent breaking.
Extra charge equipment:
○ Coin deposit lock
The input material is steel plate or steel profiles. In painting line IDEAL-LINE there is applied
a Fe-phosphate layer and the segments are dried. It ensures a better adhesion of the powder coat to the base coat. The powder coat of the desired shade is then applied onto the segments in electrostatic field and then it is hardened at temperature of approx. 180 °C. The final coat is hygienic, flexible and scratch resistant.
- can be used in modern interior architecture, especially at cloakrooms of hotels, wellness and fitness centres or swimming pools.
- Their reinforced construction of doors and bodies is made of 0,8 mm sheet metal.
- socle 160 mm
- Double-plated doors with high resistance against twisting and bending
- Reinforced construction around the lock – protection against turning and bending of the bolt
- Door bolt with a hook – protection against door crushing
- The towel hook in the side wall below the shelf
- Shelf with surface carrying capacity 30 kg
- Oval clothes bar made of eloxal aluminium
- The clothes bar furnished with three metal hooks with carrying capacity 10 kg.
- Mounting slots on sides of bodies for mounting into lines
- Mounting slots on back wall of the body
- Opening limiter
- Preparation for additional mounting of a shelf in the bottom part of the body
+ *Design with legs made of 40 x 40 mm profile with plastic gliders
+ *Cabinet design for wet environments made of powder-coated galvanized sheet metal, doors made of compact HPL surface, un-color and imitation of wood and other materials according to current offer
+ *DECORAL Metal Door - Special design of wood-imitate door and other materials
+ *Metal door UV printing - on the metal door leaf is applied the desired graphic motif of UV printing technology
• standard equipment
+ extra charge equipment
* Execution on request. The minimum order quantity is limited and the surcharges are set individuall
|Premium Garment Lockers|
|Product line||Metal doors ALFORT AD|
|Width of department (mm)||300|
|Number of departments (columns)||2|
|Number and arrangement of doors in the department||2x (Z shape)|
