Versa Electronic Chip RFID Locks

07.12.2019 10:00 Locking systems

For customers who are looking for a locking system for garment lockers, lockable boxes or charging cabinets using a RFID chip, we offer the option of mounting Versa electronic locks.
The locks can be ordered in the design for horizontal or vertical mounting, and the customer can choose from two sizes.

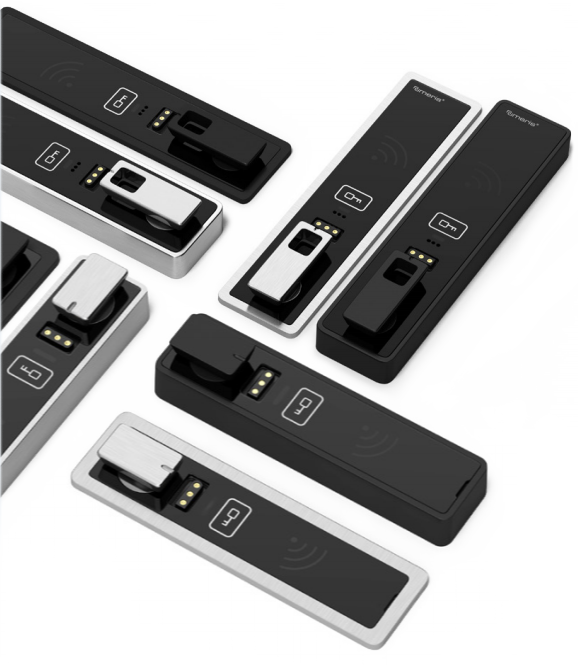

ALFA 3 – elektronické čipové zámky DIGILOCK VERSA





Design

The Versa lock case is made of die-cast metal, which contributes to a high degree of durability. The offer includes locks in a brushed nickel decor or in the black colour.

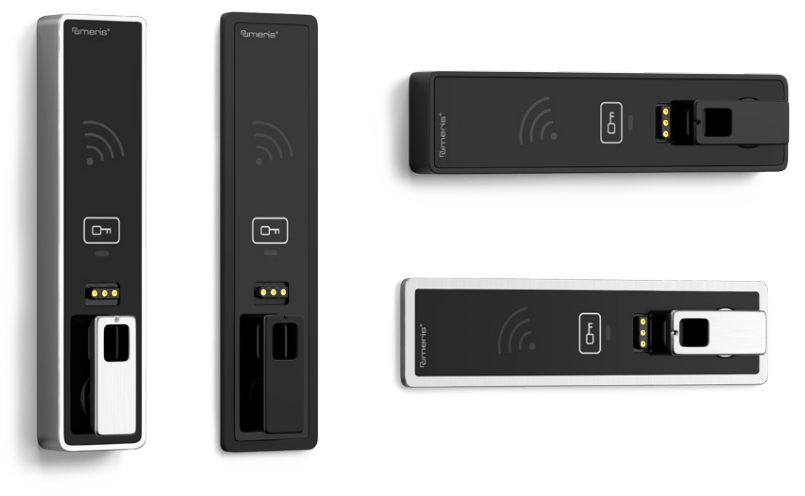

ALFA 3 – elektronické čipové zámky DIGILOCK VERSA mini, vodorovná s svislá instalace



Depending on the type of product and the size of the door, we can use either the STANDARD version with the outer part dimensions 133 x 32 x 13 mm, or the MINI version with the outer part dimensions 101 x 26 x 13 mm. Both variants of the lock can either be mounted on the door casing, or embedded in it.

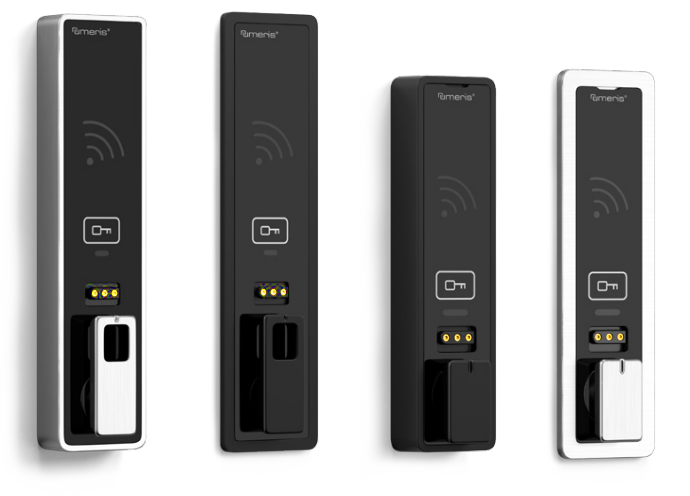

ALFA 3 – elektronické čipové zámky DIGILOCK VERSA standard a mini





Description

Versa locks have a touch interface and work with RFID standards iClass and Mifare at a frequency of 13.56 MHz (ISO 14443A • ISO 14443B • ISO 15693). On the outside of the locks, there is a slot for controlling and programming the lock using electronic keys. With their help, the lock can be programmed, users can be added or removed, and the locker can be opened in the event of a low battery.

Versa locks also have an option to program and control the locks through a mobile device. The mobile application allows simplified programming, control, and audit trail.



ALFA 3 řídící klíč zámku DIGILOCK



All Versa lock variants are equipped with a rotating control device for unlocking or locking. Its movement is transmitted to the rotating locking bolt.



Technical information

  • Service life of approx. 115,000 cycles (3-5 years)
  • IP 55, CE, IC and FCC certification
  • Battery powered with 4x AA batteries
  • 2 year warranty
  • 90° or 180° rotation angle of the bolt
  • LED and acoustic signalling



Function

Versa locks can be ordered for private or public use.



Private setting

This setting is useful if users do not change frequently. It is highly suitable for businesses and private spaces. In private setting, one or more chips are assigned to each lock. The access is changed by the administrator.

Public setting

This setting is useful when users change. The user selects a vacant locker, locks it with a chip, and unlocks it again after use. Then the locker is available for use by another user.



Important warning

When specifying the order, we recommend choosing one of the above-mentioned settings, as it is possible to change the settings only after purchasing an electronic key.



ALFA 3 řídící klíč zámku DIGILOCK





We will advise you on choosing a suitable lock variant.


TELL ME MORE




Alternative variants of electronic code locks

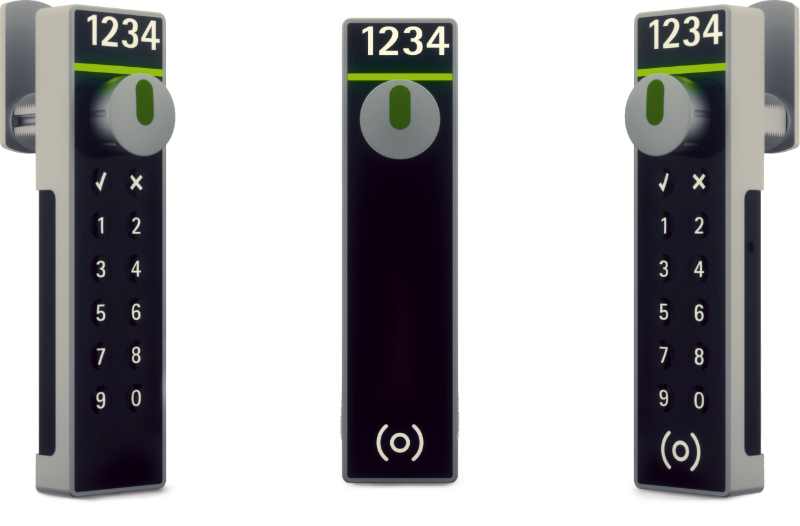

ALFA 3 – elektronické čipové zámky SAG SAFE-O-TRONIC



SAFE-O-TRONIC electronic chip lock

An electronic chip lock designed for locking garment lockers and boxes. The lock has a durable metal case, a capacitive keypad and a rotary knob. There are horizontal and vertical versions available for left and right doors.

The locks are also suitable for humid environments, with the degree of protection IP44. Battery life is approximately 30,000 cycles.

Chip locks are available in the following versions:

  • LS 200 – PIN lock with RFID programming and RFID master code function
  • LS 300 – RFID lock
  • LS 400 – RFID lock with the possibility of combined use of RFID or PIN, or RFID+PIN

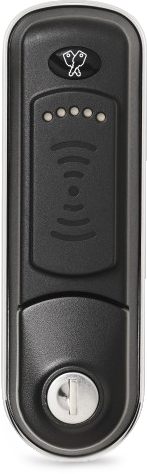

ALFA 3 – elektronický čipový zámek EURO-LOCKS 3786



EURO-LOCKS 3786 chip lock

A massive electronic chip lock designed for use in garment lockers and lockable boxes. There are vertical and horizontal versions available. It is powered by 2 AA batteries.

The lock can work in a private or public mode. The battery status warning is solved by LED. The acoustic signal can be switched on or off according to the customer’s preferences. A big advantage is the possibility of emergency unlocking with a key. The lock works with the common RFID and NFC standards.
