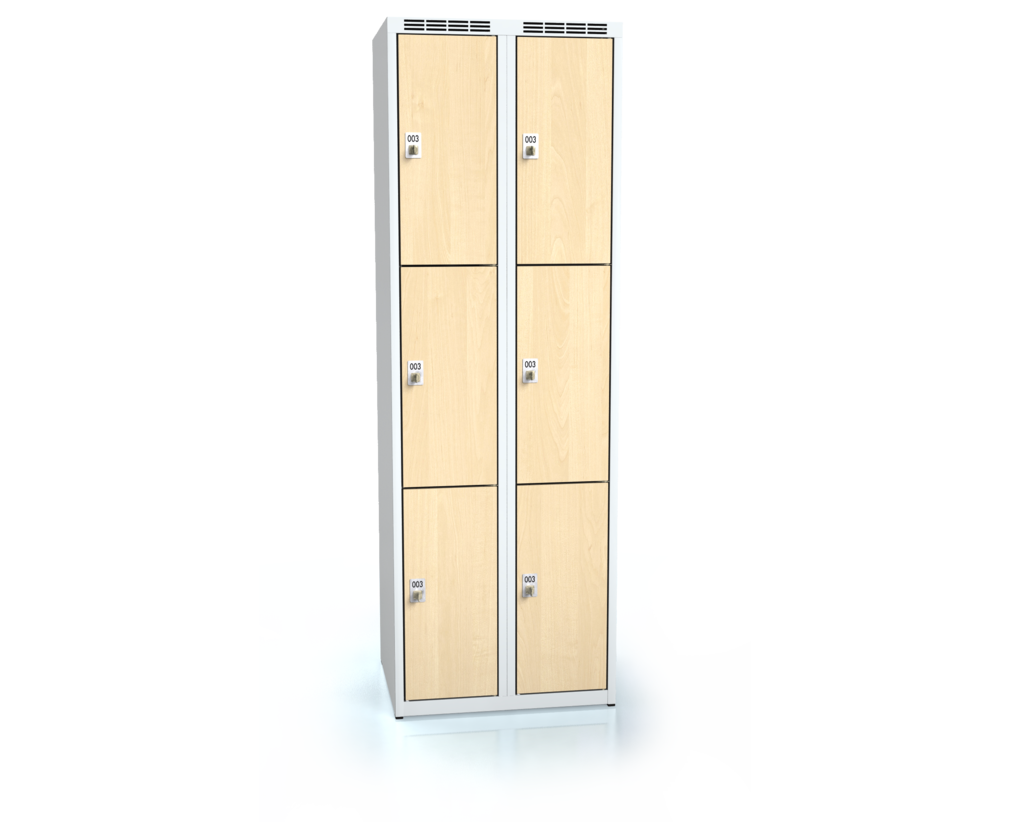

Cloakroom locker with six lockable boxes ALDERA 1800 x 600 x 500

Product code: D3M 30 2 3 O_C1_7035_L1

The following types of product are available:

Locking system
Laminated door design
In stock
Ask for project price
Ask

Cloakroom locker with six lockable boxes laminated doors, socle h=40 mm

Details

Detailed Description

All the important constructional items of the third generation of the cloakroom lockers with doors inserted in a frame construction have been completely reworked. Metal parts are made of steel sheets with higher solidity.



Are you considering the idea of placing a parcel box?

WRITE TO US



cloakroom lockers with doors inserted in a frame construction

  The frame construction of the frontal part of the body is newly profiled and provides higher resistance against violent breaking the door into the body and makes a solid support for the safety door bolt. The door construction has been also completely reworked. They are newly furnished with reinforcing elements, they are standardly prepared for installation of opening limiters and damping elements.



Ventilation system



Ventilation system

The body is furnished with an efficient ventilation system which fulfils with a generous margin demands of DIN 4547 standard. Ventilation slots are cut in a safety section and they are placed in the frontal edge of the upper partition, in locker ́s bottom, in locker ́s back wall and on surface of all shelves.

   Ventilation slots are cut in a safety section



Cylindrical lock C1, 4000 combinations, a master key option.



Locking systems

● Cylindrical lock C1, 4000 combinations, a master key option.

● Turning security padlock cap OB1 is intended for a padlock of stirrup diameter 6 - 8 mm.

Locking system consists of a bolt with a safety hook which increases the resistance of the doors against violent breaking.

Extra charge equipment:

○ Coin deposit lock
○ Code mechanical lock
○ Code electronic lock
○ Online electronic systems

○ Chip electronic lock





Surface treatment

The input material is steel plate or steel profiles. In painting line IDEAL-LINE there is applied
a Fe-phosphate layer and the segments are dried. It ensures a better adhesion of the powder coat to the base coat. The powder coat of the desired shade is then applied onto the segments in electrostatic field and then it is hardened at temperature of approx. 180 °C. The final coat is hygienic, flexible and scratch resistant.




Specification points

Product line ALDERA

  • Doors made of laminated chipboard with ABS edge
  • Door bolt with a hook – protection against door crushing
  • Doors hinged on massive metal pivots, max. opening angle 100°
  • Mounting slots on sides of bodies for mounting into lines
  • Mounting slots on back wall of the body
  • Mounting slots in the bottom for mounting to the construction of a bench
  • Preparation for additional mounting of feet or socle

Technical specification

Cabinets with Lockable Boxes
Model line 3) Aldera - laminated door
Number of departments (columns) 2
Number of doors in the department 3
Upper structure 1) straight lids
Substructure

Ask for D3M 30 2 3 O

*
*
*
*
