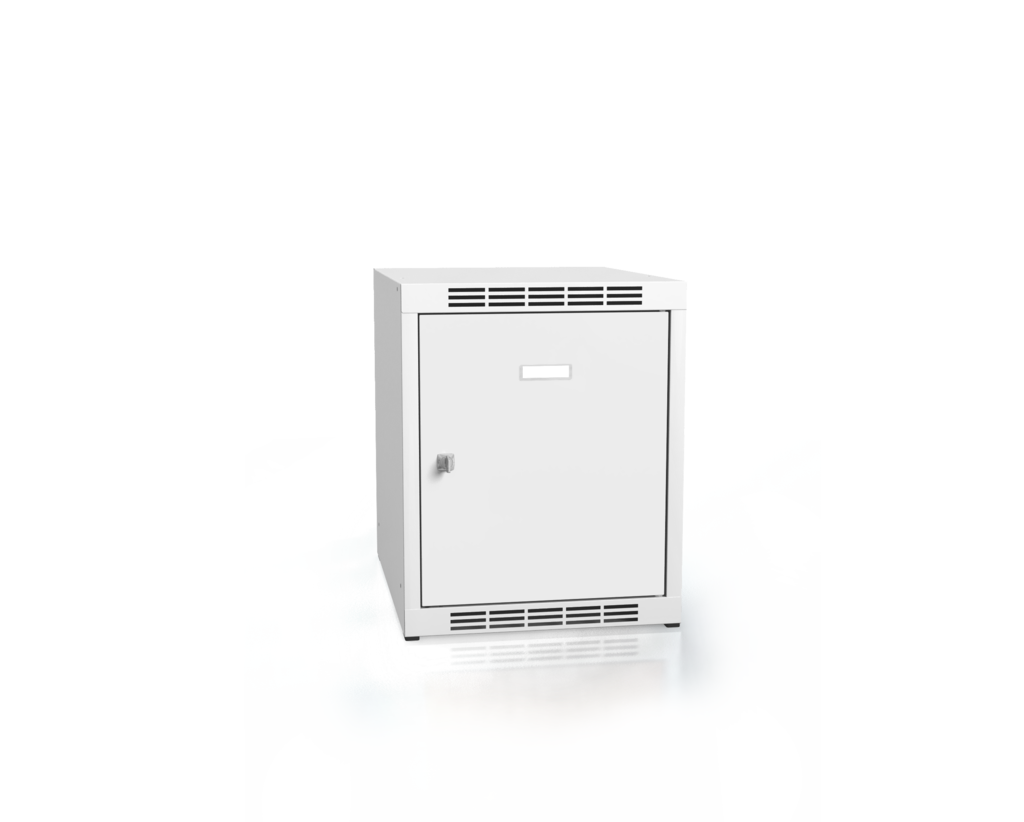

Additional cabinets for cloakroom lockers ALDOP 490 x 400 x 500

Product code: N3A 40 1 1 O_C1_7035_7035

The following types of product are available:

Locking system
Door color RAL palette KLASIK
In stock
Ask for project price
Ask

Additional cabinets for cloakroom lockers with double-plated doors, the width of the department 400 mm, number department - 1, number of doors in the department - 1.

Details

Detailed Description

"

All the important constructional items of the third generation of the cloakroom lockers with doors inserted in a frame construction have been completely reworked. Metal parts are made of steel sheets with higher solidity.



Are you considering the idea of placing a parcel box?

WRITE TO US



cloakroom lockers with doors inserted in a frame construction

  The frame construction of the frontal part of the body is newly profiled and provides higher resistance against violent breaking the door into the body and makes a solid support for the safety door bolt. The door construction has been also completely reworked. They are newly furnished with reinforcing elements, they are standardly prepared for installation of opening limiters and damping elements.



The body is furnished with an efficient ventilation system



Ventilation system

The body is furnished with an efficient ventilation system which fulfils with a generous margin demands of DIN 4547 standard. Ventilation slots are cut in a safety section and they are placed in the frontal edge of the upper partition, in locker ́s bottom, in locker ́s back wall and on surface of all shelves.

  Right function of ventilation please follow the installation instruction of the producer



Cylindrical lock C1, 4000 combinations, a master key option.



Locking systems

● Cylindrical lock C1, 4000 combinations, a master key option.

● Turning security padlock cap OB1 is intended for a padlock of stirrup diameter 6 - 8 mm.

Locking system consists of a bolt with a safety hook which increases the resistance of the doors against violent breaking.

Extra charge equipment:

○ Coin deposit lock
○ Code mechanical lock
○ Code electronic lock
○ Online electronic systems

○ Chip electronic lock





Surface treatment

The input material is steel plate or steel profiles. In painting line IDEAL-LINE there is applied
a Fe-phosphate layer and the segments are dried. It ensures a better adhesion of the powder coat to the base coat. The powder coat of the desired shade is then applied onto the segments in electrostatic field and then it is hardened at temperature of approx. 180 °C. The final coat is hygienic, flexible and scratch resistant.




"

Specification points

Product line ALDOP, safety class B

  • Double-plated doors with high resistance against twisting and bending
  • Reinforced construction around the lock – protection against turning and bending of the bolt
  • Door bolt with a hook – protection against door crushing
  • Doors hinged on massive metal pivots, max. opening angle 100°
  • Plastic transparent frame for a nameplate of dim. 15 x 60 mm.
  • Mounting slots on sides of bodies for mounting into lines
  • Mounting slots on back wall of the body
  • Mounting slots in the bottom for mounting to the construction of a cloakroom
  • Opening limiter

Technical specification

features:
Product line
Number of departments (columns) 1
Width of department (mm) 400

Ask for N3A 40 1 1 O

*
*
*
*
