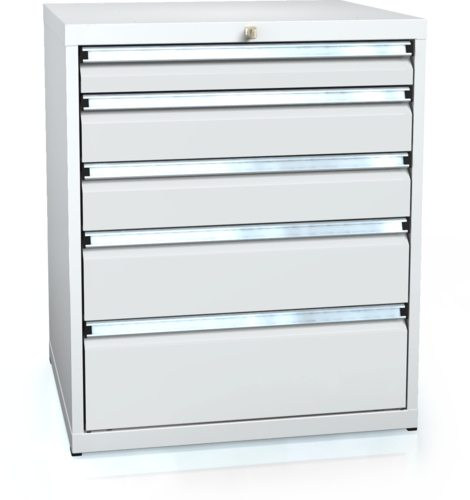

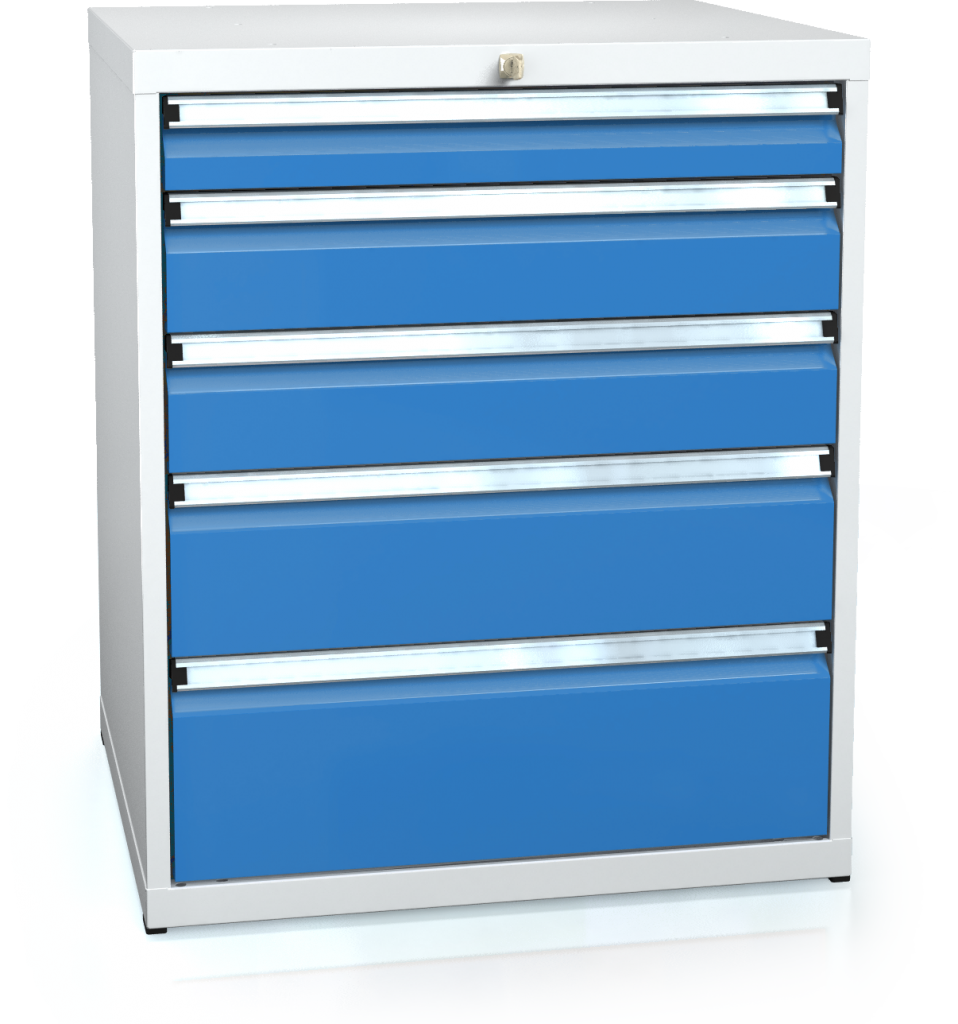

Drawer 3627E, sliding Fulterer 80%, max. load 90 kg. The body is furnished with a central locking system (cylindrical lock) with an integrated function which blocks the opening of several drawers together - it ́s a protection against overturning. The bottom part of the body is furnished with slots for anchoring to the floor. We recommend anchoring the cabinet in case it will be loaded to the limit of its maximum carrying capacity.
Assembly mouldings on the inner part of bodies allow installing drawers in 1U = 44,45 mm raster.
● Cylindrical lock C1, 4000 combinations, a master key option.
● Turning security padlock cap OB1 is intended for a padlock of stirrup diameter 6 - 8 mm.
Locking system consists of a bolt with a safety hook which increases the resistance of the doors against violent breaking.
Extra charge equipment:
The input material is steel plate or steel profiles. In painting line IDEAL-LINE there is applied
|Basic division||a) sockets|
|Internal dimension of the drawer||3627E (604 x 451 mm)|
|Body height||d) 17U (840 mm)|
|Storage of drawers||a) 80% extension Fulterer, load capacity 90 Kg|
|Upper structure||painted sheet metal|
|Substructure||a) base socle 40 mm|
