Outdoor parcel station
AlfaBOX is a patented modular system of parcel lockers that offers a unique opportunity to create tailor-made solutions for logistics companies. Regardless of whether you need a robust, high-capacity network of delivery points or are planning a rapid expansion of pickup locations in densely populated areas or rural regions, alfaBOX has suitable solutions for all these requirements.
.svg "Technical information")
Technical information
14 items
Top camera - 5G Antenna with an overhang for outdoor cabinet units 530
ABE VIK 530 CAM 5G
A top with an overhang is installed on 530 mm wide parcel delivery station cabinet units. LED lighting, a 5G antenna and an IP camera are installed in the front overhang. The overhanging top effectively protects the user from adverse weather conditions.
Modul - 530 mm
Overhang - 400 mm
Detail
Top camera - 5G Antenna with an overhang for outdoor cabinet units 560
ABE VIK 560 CAM 5G
A top with an overhang is installed on 560 mm wide parcel delivery station cabinet units. LED lighting, a 5G antenna and an IP camera are installed in the front overhang. The overhanging top effectively protects the user from adverse weather conditions.
Modul - 530 mm
Overhang - 400 mm
Detail

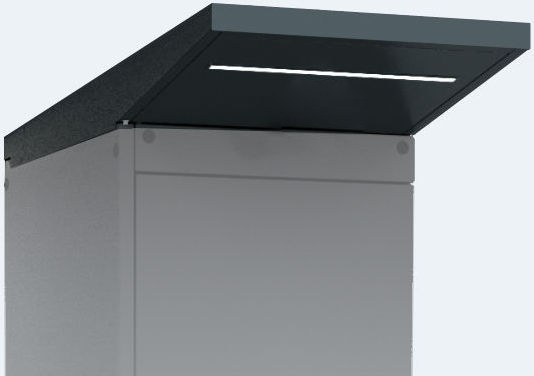

Top with a reduced overhang 90 for outdoor cabinet units 530
ABE VIK 530 ZKR LED
A top with a reduced overhang is installed on 530 mm wide parcel delivery station cabinet units. LED lighting is installed in the front overhang.
Modul - 530 mm
Overhang - 90 mm
Detail
Outdoor locker unit of the package delivery station 10x doors
ABE VIK 560 ZKR LED
Outdoor locker unit of the package delivery station, 10x doors, electronic locks with a position sensor, LED lighting of the compartment interior, electronic locks and connecting cables, mechanical emergency opening system, height-adjustable legs with anchoring and covering elements, prepared for installation of the roof and side panels.
Exterior height (mm) - 2200
Exterior width (mm) - 530
Exterior depth (mm) - 625
Interior width (mm) - 458
Interior depth (mm) - 600
Compartment heights (mm) - 80 / 180 / 380
Door mounting – right-handed
Height levelling range (mm) - 55
Lock opening force (N) - 21
Detail
Top camera with an overhang for outdoor cabinet units 530
ABE VIK 530 CAM
A top with an overhang is installed on 530 mm wide parcel delivery station cabinet units. LED lighting and an IP camera are installed in the front overhang. The overhanging top effectively protects the user from adverse weather conditions.
Modul - 530 mm
Overhang - 400 mm
Detail
Top camera with an overhang for outdoor cabinet units 560
ABE VIK 560 CAM
A top with an overhang is installed on 560 mm wide parcel delivery station cabinet units. LED lighting and an IP camera are installed in the front overhang. The overhanging top effectively protects the user from adverse weather conditions.
Modul - 530 mm
Overhang - 400 mm
Detail

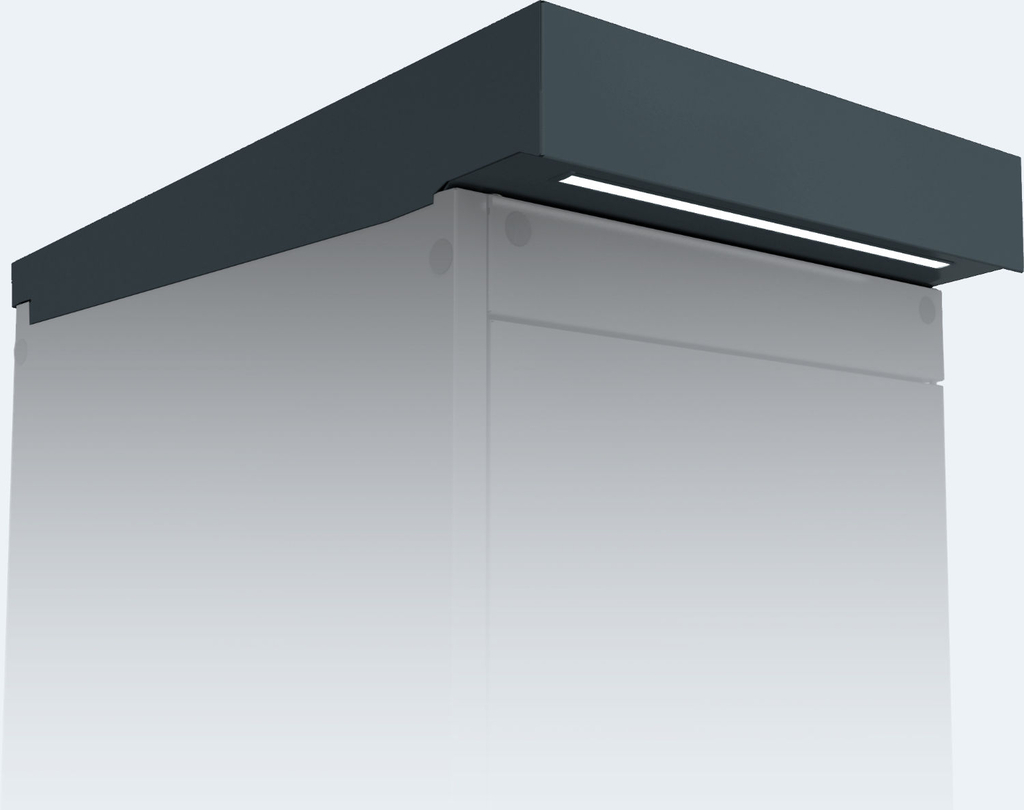

Overhang for outdoor cabinet units 530
ABE VIK 530
A top with an overhang is installed on 530 mm wide parcel delivery station cabinet units. LED lighting are installed in the front overhang. The overhanging top effectively protects the user from adverse weather conditions.
Modul - 530 mm
Overhang - 400 mm
Detail
Overhang for outdoor cabinet units 560
ABE VIK 560
A top with an overhang is installed on 560 mm wide parcel delivery station cabinet units. LED lighting are installed in the front overhang. The overhanging top effectively protects the user from adverse weather conditions.
Modul - 530 mm
Overhang - 400 mm
Detail
Outdoor parcel delivery unit with 26 boxes
ABE T 26 K0001
Parcel delivery unit with 26 boxes for outdoor use. The set is made up of four cabinet units fitted with overlapping tops, side cover panels, LED lighting IP overview camera, face camera and a height-adjustable system for anchoring to the installation base.
The terminal is equipped with a 10" touch screen, front camera, electronic control system, payment terminal and LED lighting of the payment terminal area.
At the customer's request, it is also possible to install a scanner, printer or other devices.
Height (mm) - 2345
Width (mm) - 1680
Depth (mm) - 1045 / 625
Detail
Outdoor parcel delivery unit with 48 boxes
ABE T 48 K0001
Parcel delivery unit with 48 boxes for outdoor use. The set is made up of seven cabinet units fitted with overlapping tops, side cover panels, LED lighting IP overview camera, face camera and a height-adjustable system for anchoring to the installation base.
The terminal is equipped with a 10" touch screen, front camera, electronic control system, payment terminal and LED lighting of the payment terminal area.
At the customer's request, it is also possible to install a scanner, printer or other devices.
Height (mm) - 2345
Width (mm) - 2770
Depth (mm) - 1045 / 625
Detail
Outdoor parcel delivery unit with 59 boxes
ABE T 59 K0001
Parcel delivery unit with 59 boxes for outdoor use. The set is made up of four cabinet units fitted with overlapping tops, side cover panels, LED lighting IP overview camera, face camera and a height-adjustable system for anchoring to the installation base.
The terminal is equipped with a 10" touch screen, front camera, electronic control system, payment terminal and LED lighting of the payment terminal area.
At the customer's request, it is also possible to install a scanner, printer or other devices.
Height (mm) - 2345
Width (mm) - 3830
Depth (mm) - 1045 / 665
Detail
Outdoor parcel delivery unit with 74 boxes
ABE T 74 K0001
Parcel delivery unit with 74 boxes for outdoor use. The set is made up of eleventy cabinet units fitted with overlapping tops, side cover panels, LED lighting IP overview camera, face camera and a height-adjustable system for anchoring to the installation base.
The terminal is equipped with a 10" touch screen, front camera, electronic control system, payment terminal and LED lighting of the payment terminal area.
At the customer's request, it is also possible to install a scanner, printer or other devices.
Height (mm) - 2345
Width (mm) - 4890
Depth (mm) - 1045 / 625
Detail
