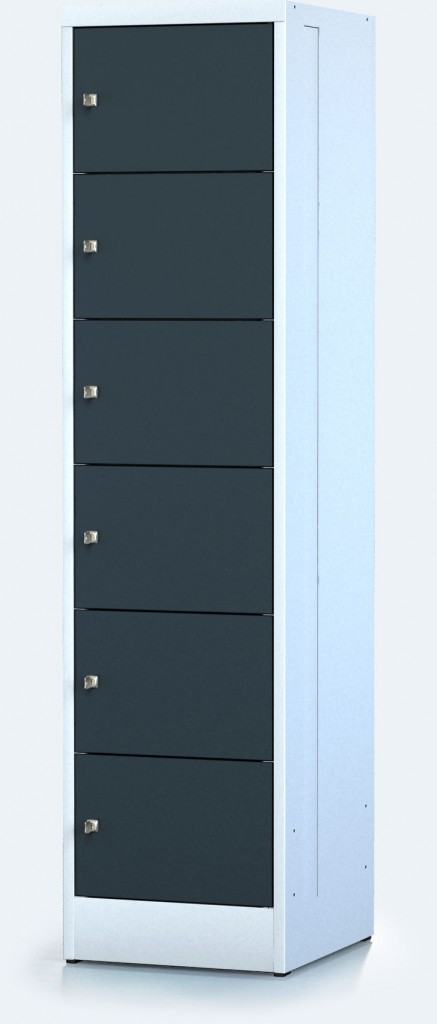

Mobile Device Charging Locker - 6 Doors

Product code: CB 45 1 6 230V 7035 7016

The following types of product are available:

Door color RAL palette KLASIK
In stock
Ask for project price
Ask

The mobile device charging locker, module 450, 6 doors in the module, 230V socket in each compartment, including wiring and power supply, door opening angle limiters

Mobile device charging cabinet - 6 doors (note: the same for all photos in the gallery)

Details

Detailed Description

Mobile device charging cabinet

The charging locker is made as a rigid weldment of sheet steel with increased strength. At the back of each box, there are ventilation holes to ensure natural ventilation.

The storage shelves have an area load capacity of 30 Kg. The durable double plated doors are pivotally mounted on solid metal hinges, and are fitted with opening angle limiters.



Inside, on the right side of each box, there is a socket for connecting to the power supply unit. The delivery includes a 2m long power cable.

  Laptop and tablet charging trolley, tablet and notebook storage shelves with 230V socket



Basic locking system of the battery charging cabinet

The locker doors are standardly locked with cylinder locks, which are supplied with two keys. Security is guaranteed thanks to a series of 4,000 combinations, reinforcement of the lock mounting hole and a safety hook bolt. You can order a central key for emergency opening.





For an extra charge, the lockers can be fitted with coin deposit or coin operated locks, code mechanical or electronic locks, or chip locks.

View more information about the locking systems

  Electronic locking system of the notebook charging cabinet





Technical parameters

Number of el. sockets 230 V 6
Height (mm) 1800
Width (mm) 450
Depth (mm) 525
Weight (kg) 48
Rated current 16 A
Rated voltage (V) 230 V AC, 50Hz
Cover IP 30/20
Power cable length 2 m





Specification points

  • Massive welded body structure, sheet metal with increased strength
  • Load capacity of the charging box shelves of 30 Kg
  • Reinforced door with an opening angle of approx. 110°, fitted with an opening angle limiter
  • Cylindrical lock with two keys, 4,000 possible combinations, prepared mounting hole for a central key, possibility of alternative locking methods (link to the magazine)
  • Durable powder paint
