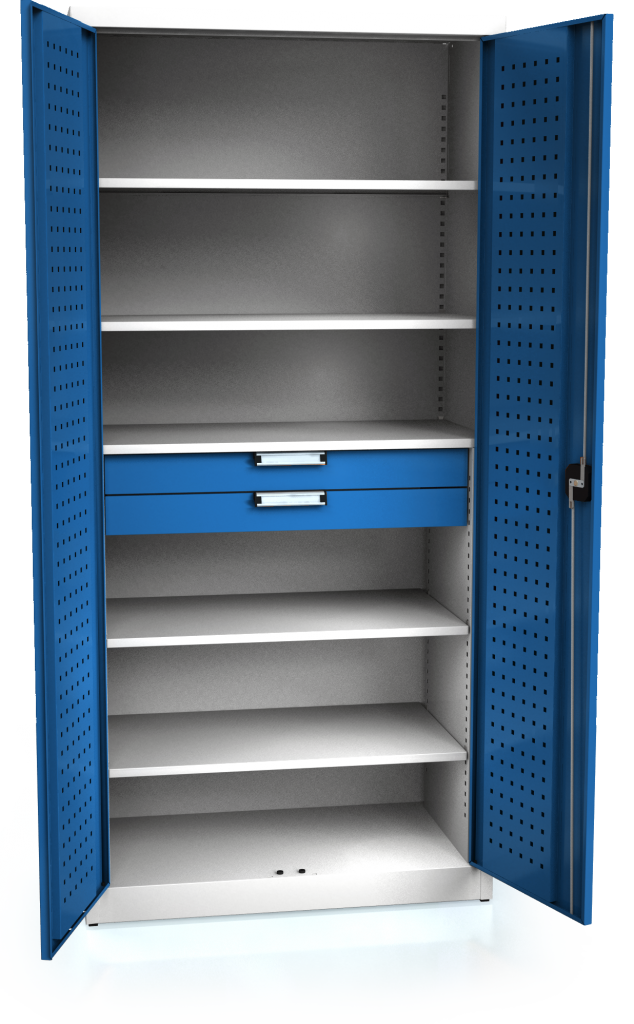

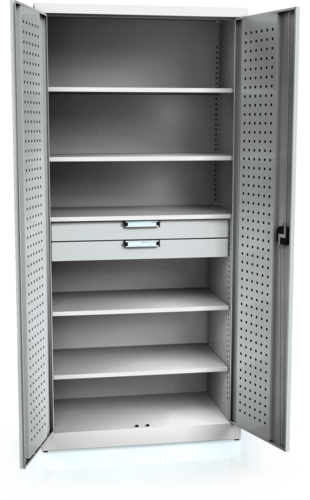

System cupboard UNI 1950 x 920 x 500 - shelves-drawers

Product code: DSU 92 1 K03 C1 7035 5012

The following types of product are available:

Colour shades of KLASIK chart
Door color RAL palette KLASIK
In stock
Ask for project price
Ask

System cupboard UNI 1950 x 920 x 500. The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall.

Details

Detailed Description

The body ́s carrying capacity is 200 - 600 kg. The body is inside prepared for installation of shelves or supporting construction for installation of drawers. The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism. The shelves have a surface carrying capacity 80 kg and are adjustable after 25 mm. The drawers in 4623 E and 2223 E version are offered in five heights. Their surface carrying capacity is 40 kg, sliding is 100%. Into the drawers there can be mounted divider sets to divide it transversaly.

Specification points

  • The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall. The body ́s carrying capacity is 200 - 600 kg.
  • EUROPERFO® the inner part of doors is perforated in order to mount holders for tools.
  • The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism.
  • The shelves have a surface carrying capacity 80 kg and are adjustable after 25 mm.
  • The drawers in 4623 E and 2223 E version are offered in five heights. Their surface carrying capacity is 40 kg, sliding is 100%. Into the drawers there can be mounted divider sets to divide it transversaly.

Technical specification

Workshop Cabinets
Product line UNI
Upper structure straight
Cabinet height 1950
Cabinet width 920
Body design Full back wall
Cabinet equipment b) shelf + sockets
Storage of drawers d) telescopic 100% extension load capacity 40 Kg
