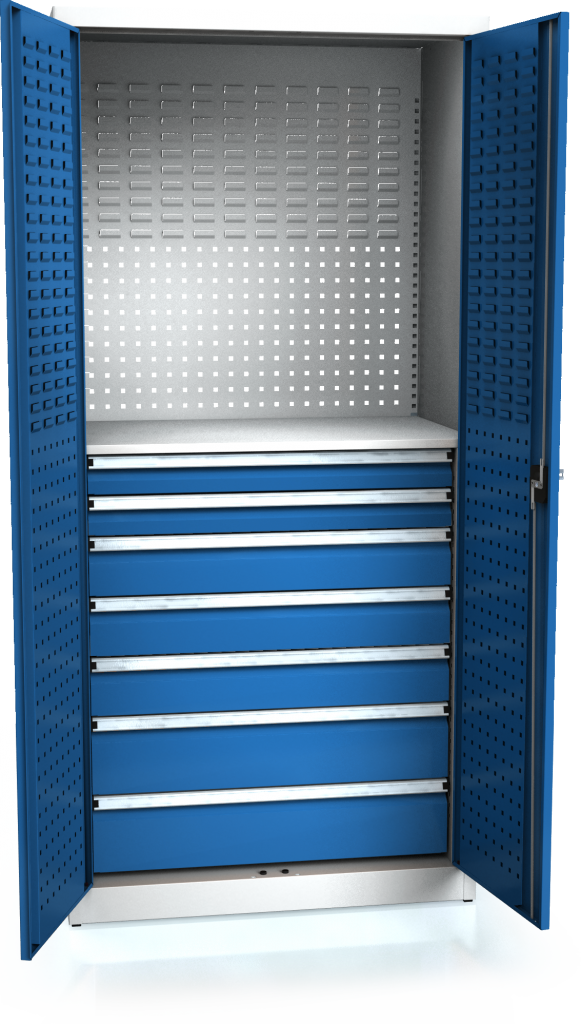

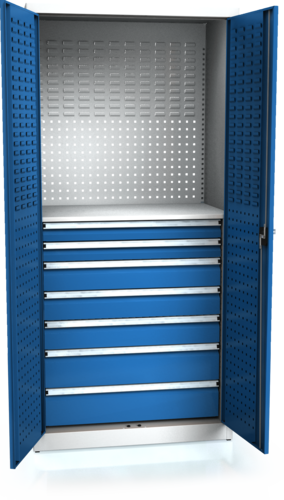

System cupboard PROFI 1950 x 920 x 600 - drawers

Product code: DSP 92 1 K13 A C1 7035 5012

The following types of product are available:

Colour shades of KLASIK chart
Door color RAL palette KLASIK
In stock
Ask for project price
Ask

System cupboard PROFI 1950 x 920 x 600Drawers 4527E, sliding 80%, max. load 90 kg. The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall.

Details

Detailed Description

The body ́s carrying capacity is 400 - 800 kg. The body is inside prepared for installation of shelves or supporting construction for installation of drawers. The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism.

The drawers are guided in massive slide-rails Fulterer with four ball bearings. These slide-rails are characteristic by an easy and silent running.
The drawers are furnished with a comfort aluminium handle with an installed holder of a safety pin DKP PVZ and with a groove for a label with drawer ́s contents.
The inner parts of the drawers are pressed and grooved for installing of metal divider sets. Groove spacing is 1E = 17 mm.
Useable drawer plan is 757 x 451 mm.



Specification points

  • The body is characterized by a solid welded construction and it is furnished with a height adjustment and with slots for anchoring to the floor or to the wall. The body ́s carrying capacity is 400 - 800 kg.
  • EUROPERFO® the inner part of doors is perforated in order to mount holders for tools.
  • The doors are hinged on massive pivots, angle of opening is 110°. On their inner part there is a reinforcing element. Locking is solved by a turning padlock cap and a three-point locking mechanism.
  • The blocation of opening several drawers makes a protection against cupboard ́s overturning when several heavily weighted drawers are opened at the same time. This system is for an extra charge. As the first producer we offer this system for cupboards with wing doors.
  • Damped closing can be ordered for an extra charge. It is a comfort device for drawers or for CNC ejecting frames.

Technical specification

Workshop Cabinets
Product line PROFI
Upper structure straight
Cabinet height 1950
Cabinet width 920
Body design Storage bins
Cabinet equipment c) sockets
Storage of drawers a) 80% extension Fulterer, load capacity 90 Kg
