Individual programme of components of the ALCERA workbenches
73 items

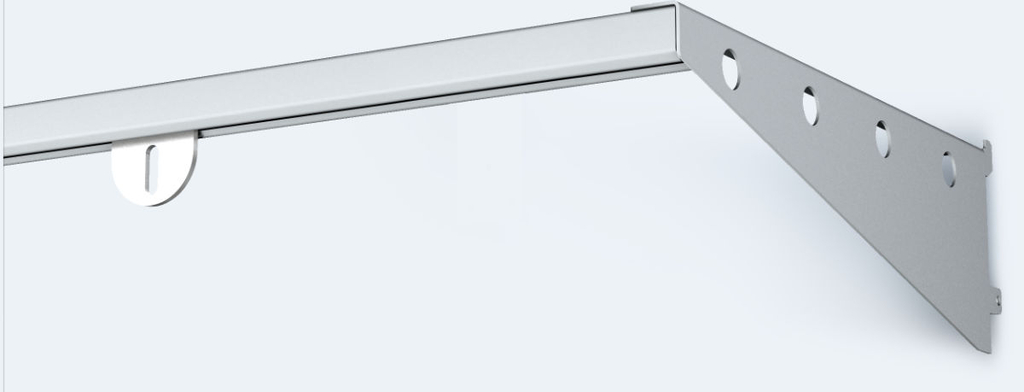

Hanging system - 1500
DP DZS 1500
The holder of the hanging system is intended for mounting on the holders of the EUROPERFO panels of the DEP line. The holder is furnished with slots for mounting a 33 x 31 mm guiding profile in 50 mm spacing. The max. load of the construction is 15 kg. The profile can be furnished with two- or four-castors steel trolleys. The DZK version allows installing an illuminating body.
Length: 1500 mm
Depth: 432
Detail

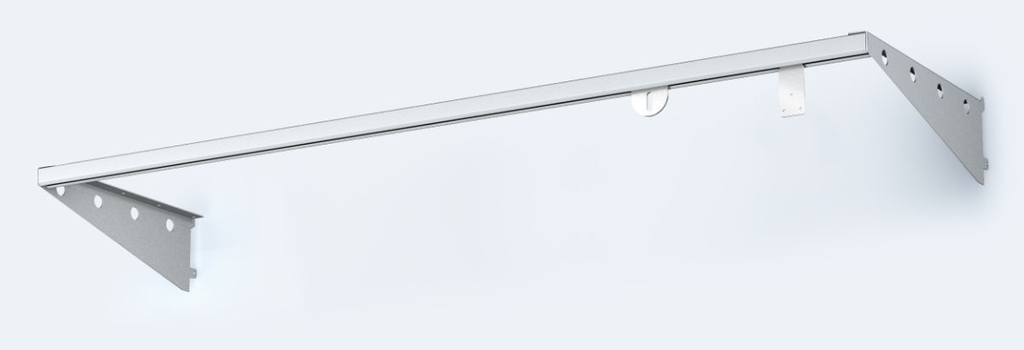

Hanging system - 2000
DP DZS 2000
The holder of the hanging system is intended for mounting on the holders of the EUROPERFO panels of the DEP line. The holder is furnished with slots for mounting a 33 x 31 mm guiding profile in 50 mm spacing. The max. load of the construction is 15 kg. The profile can be furnished with two- or four-castors steel trolleys. The DZK version allows installing an illuminating body.
Length: 2000 mm
Depth: 432
Detail
Hinged shelve - screw joint - 715x240
DP POL 200 702 P
We standardly produce shelves in two widths and three depths. The part of the supply are also assembling consols for installation in holders of the EUROPERFO panels of the DEP line. The shelves have in their front parts a stop moulding and a moulding for description. The shelf ́s slope can be set in several positions. Mounting by screw joints.
Length: 715 mm
Depth: 240 mm
Detail
Hinged shelve - revolving handle - 715x340
DP POL 300 702 S
We standardly produce shelves in two widths and three depths. The part of the supply are also assembling consols for installation in holders of the EUROPERFO panels of the DEP line. The shelves have in their front parts a stop moulding and a moulding for description. The shelf ́s slope can be easily set in several positions by using the revolving handle.
Length: 715 mm
Depth: 340 mm
Detail
Hinged shelve - revolving handle - 715x240
DP POL 200 702 S
We standardly produce shelves in two widths and three depths. The part of the supply are also assembling consols for installation in holders of the EUROPERFO panels of the DEP line. The shelves have in their front parts a stop moulding and a moulding for description. The shelf ́s slope can be easily set in several positions by using the revolving handle.
Length: 715 mm
Depth: 240 mm
Detail
Hinged shelve - screw joint - 715x340
DP POL 300 702 P
We standardly produce shelves in two widths and three depths. The part of the supply are also assembling consols for installation in holders of the EUROPERFO panels of the DEP line. The shelves have in their front parts a stop moulding and a moulding for description. The shelf ́s slope can be set in several positions. Mounting by screw joints.
Length: 715 mm
Depth: 340 mm
Detail
Hinged shelve - screw joint - 715x440
DP POL 400 702 P
We standardly produce shelves in two widths and three depths. The part of the supply are also assembling consols for installation in holders of the EUROPERFO panels of the DEP line. The shelves have in their front parts a stop moulding and a moulding for description. The shelf ́s slope can be set in several positions. Mounting by screw joints.
Length: 715 mm
Depth: 440 mm
Detail
