Product code: ABM 40 P 40D-S01 K0004

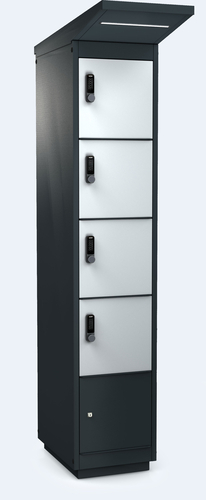

This safe and durable solution is perfect for public spaces, businesses, and hotels. It features four lockable compartments, each equipped with 230 V outlets, allowing for convenient and protected e-bike battery charging.

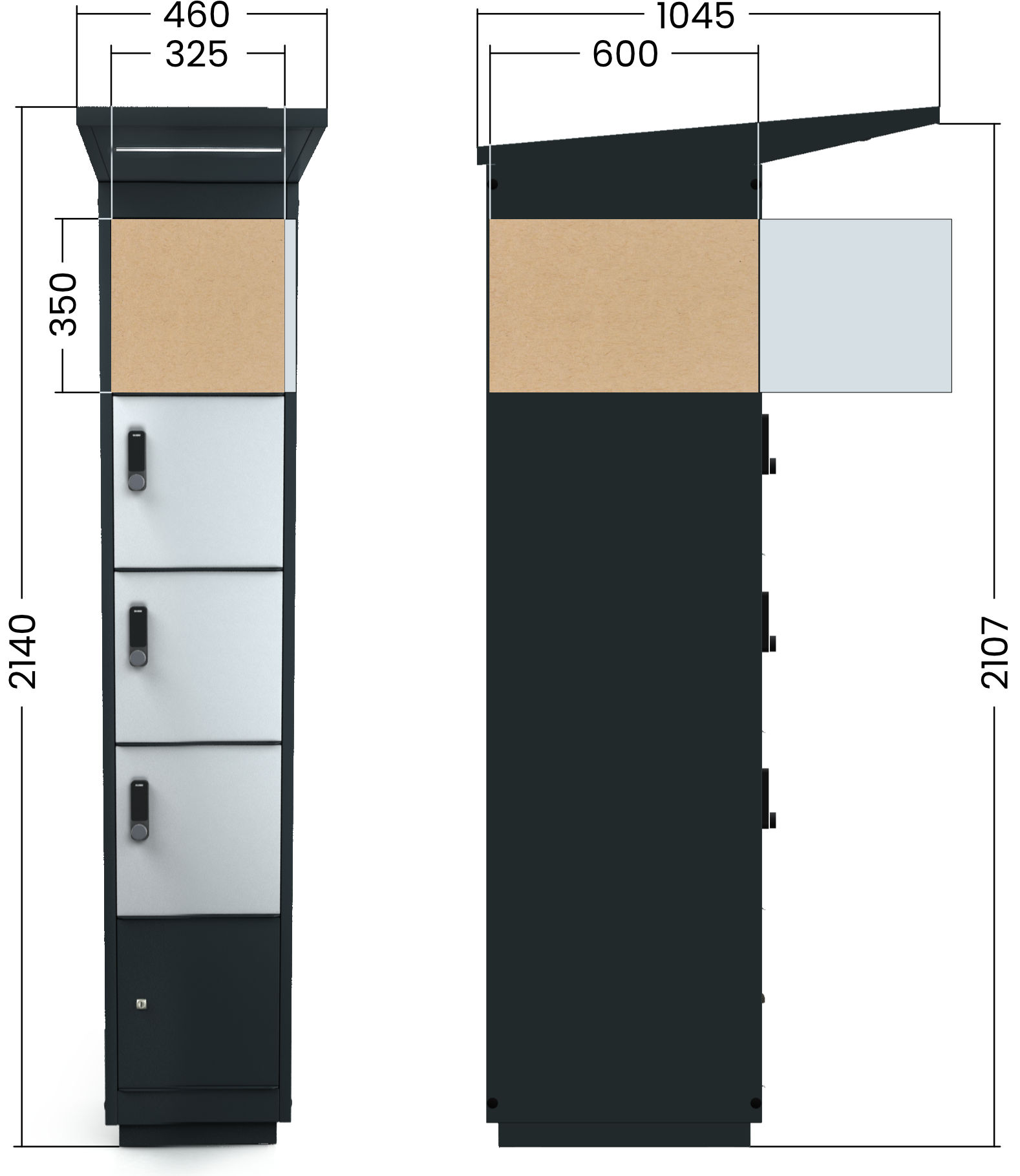

.jpg "Dimensional diagram of the e-bike charging unit – open compartments shown")
- Height (mm) - 2140
- Width (mm) - 460
- Depth (mm) - 1045
- Compartment Height (mm) - 350
- Compartment Width (mm) - 325
- Compartment Depth (mm) - 600
Detailed Description
- 4 Lockable User Compartments – Each compartment includes two 230 V sockets (max. 500 W per compartment), ideal for connecting personal chargers
- Service Compartment – A secure, public-inaccessible area housing the main electrical distribution panel
- Robust Construction – Made from enhanced-strength steel, the cabinet is resistant to both vandalism and adverse weather conditions
- Natural Ventilation – Ventilation openings on the side of each compartment
- Safety & Ergonomics – Double-panel doors with an opening-angle limiter, mounted on heavy-duty metal hinges
- Shelf Load Capacity – 30 kg per compartment

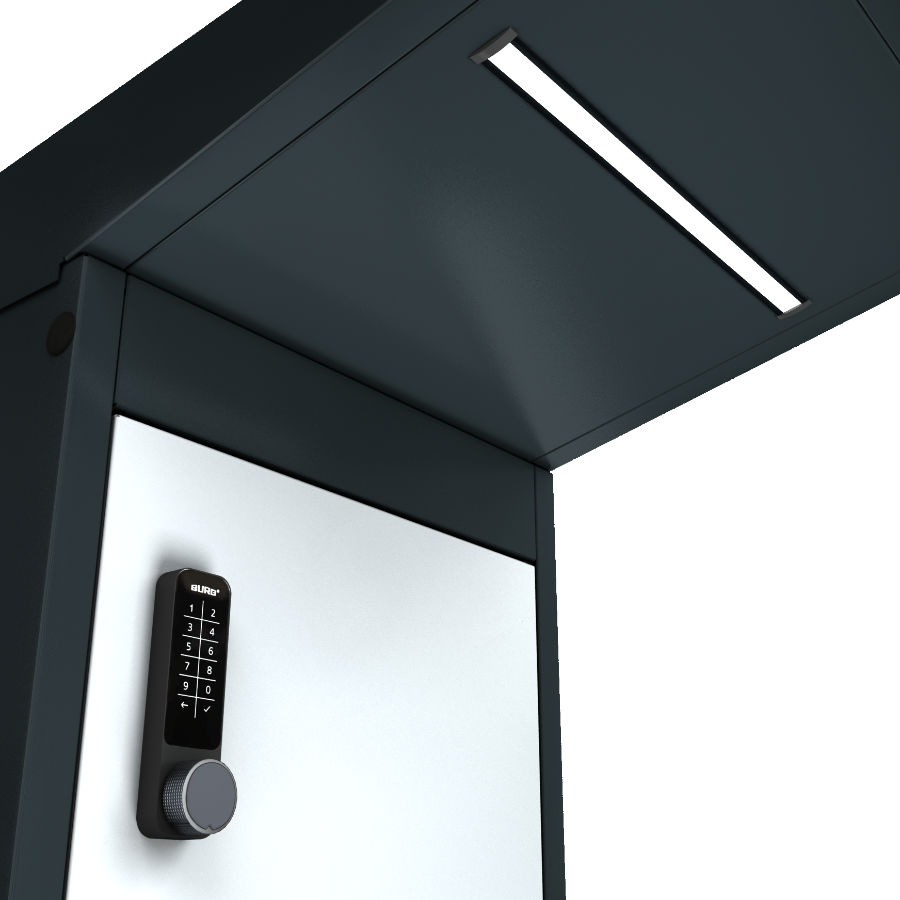

- Lighting – LED illumination of the external area
Specification points
- Number of User Boxes: 4
- Outlets in each Box: 2 × 230 V / max. 500 W
- Protection: 30 mA residual-current device
- Construction: Steel sheet
- Ventilation: Passive, rear ventilation openings
- Installation: On a flat concrete base min. 460 × 620 mm, recommended depth 500 mm
- Lighting: External LED lighting
- Use: Suitable for both exterior and interior
