Product code: ABM 40 P 40D-S01 K0001

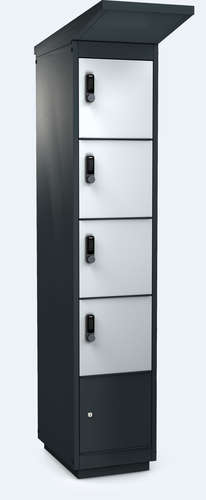

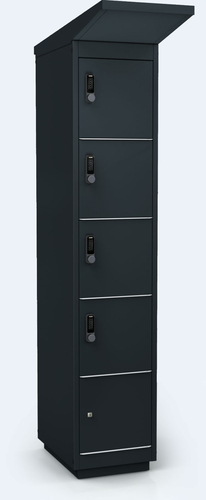

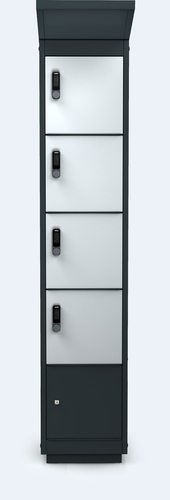

A secure and durable solution for e-bike charging in public spaces, companies, and hotels. This unit features 4 lockable bays, each with 230V outlets for convenient and protected charging.

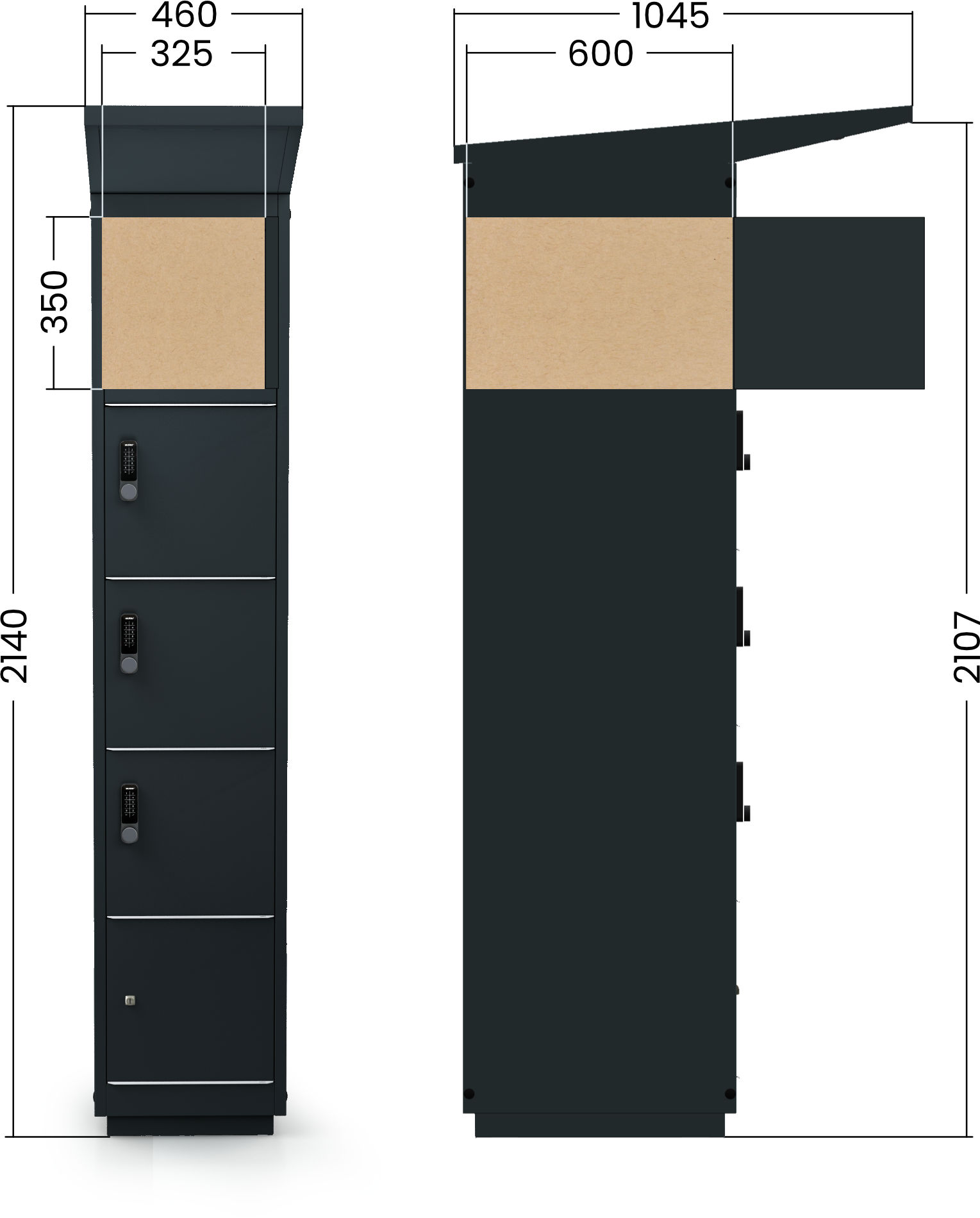

- Height (mm) - 2140
- Width (mm) - 460
- Depth (mm) - 1045
- Box height (mm) - 350
- Box width (mm) - 325
- Box depth (mm) - 600
Detailed Description

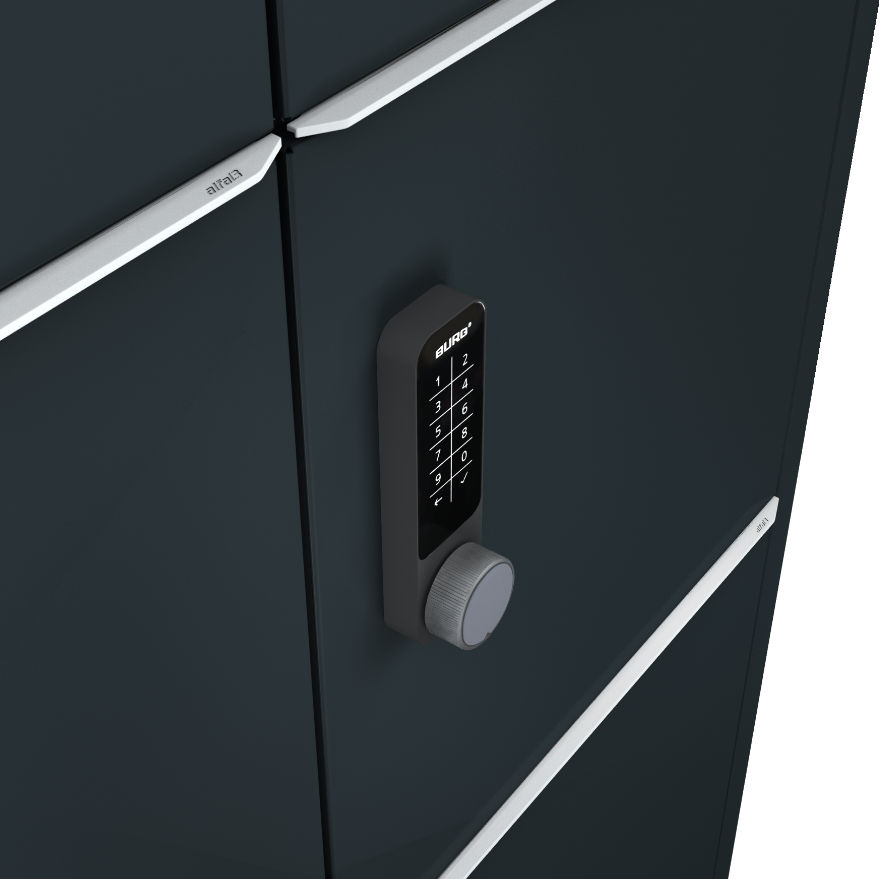

- 4 Lockable User Comprtments – each comes with a pair of 230V outlets (max. 500 W per box), perfect for users to connect their chargers.
- Service Compartment – secured, not accessible to the public, containing the system’s electrical distribution panel.
- Robust Construction – the steel cabinet boasts enhanced strength, making it highly resistant to both vandalism and harsh weather conditions.
- Natural Ventilation – ventilation openings on the side of each compartment.
Specification points
- Number of User Boxes: 4
- Outlets in each Box: 2 × 230 V / max. 500 W
- Protection: 30 mA residual-current device
- Construction: Steel sheet
- Ventilation: Passive, rear ventilation openings
- Installation: On a flat concrete base min. 460 × 620 mm, recommended depth 500 mm
- Intended Use: Suitable for both exterior and interior
