Product code: ABM 40 P 40D-S01 K0002

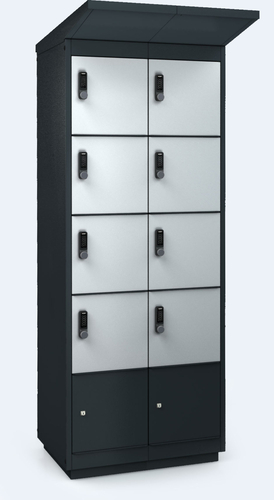

This charging locker offers a safe and durable solution for public spaces, businesses, and hotels. Eight lockable boxes with 230V outlets enable convenient and protected charging of e-bike batteries.

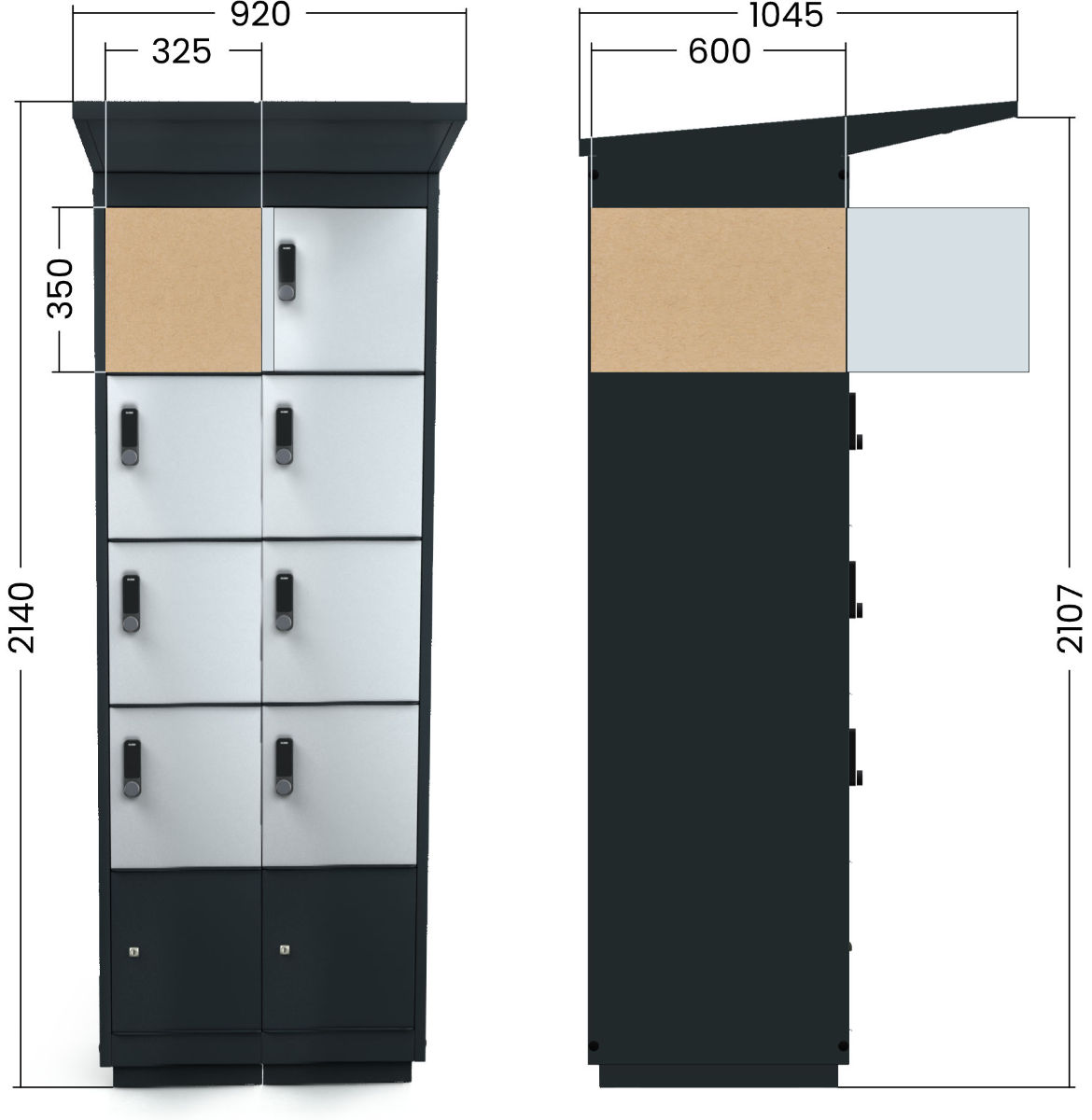

.jpg "Technical layout of the ALFA 3 charging module – open door view")
- Height (mm) - 2140
- Width (mm) - 920
- Depth (mm) - 1045
- Box height (mm) - 350
- Box width (mm) - 325
- Box depth (mm) - 600
Detailed Description
- 8 Lockable User Compartments – each equipped with a pair of 230V outlets (max. 500 W per box), perfect for users to connect their chargers.
- Service Compartment – secured, not accessible to the public, containing the system’s electrical distribution panel.
- Robust Construction – the steel cabinet boasts enhanced strength, making it highly resistant to both vandalism and harsh weather conditions.
- Natural Ventilation – ventilation openings on the side of each compartment.
- Safety and Ergonomics – Designed with double-wall doors that include an opening-angle limiter, mounted on heavy-duty metal hinges.
- Shelf Load Capacity – 30 kg per compartment.
Specification points
- Number of User Boxes: 8
- Outlets in each Box: 2 × 230 V / max. 500 W
- Protection: 30 mA residual-current device (RCD)
- Construction: Steel sheet
- Ventilation: Passive, rear ventilation openings
- Installation: On a flat concrete base, min. 460 × 620 mm, recommended depth 500 mm
- Intended Use: Suitable for both exterior and interior
