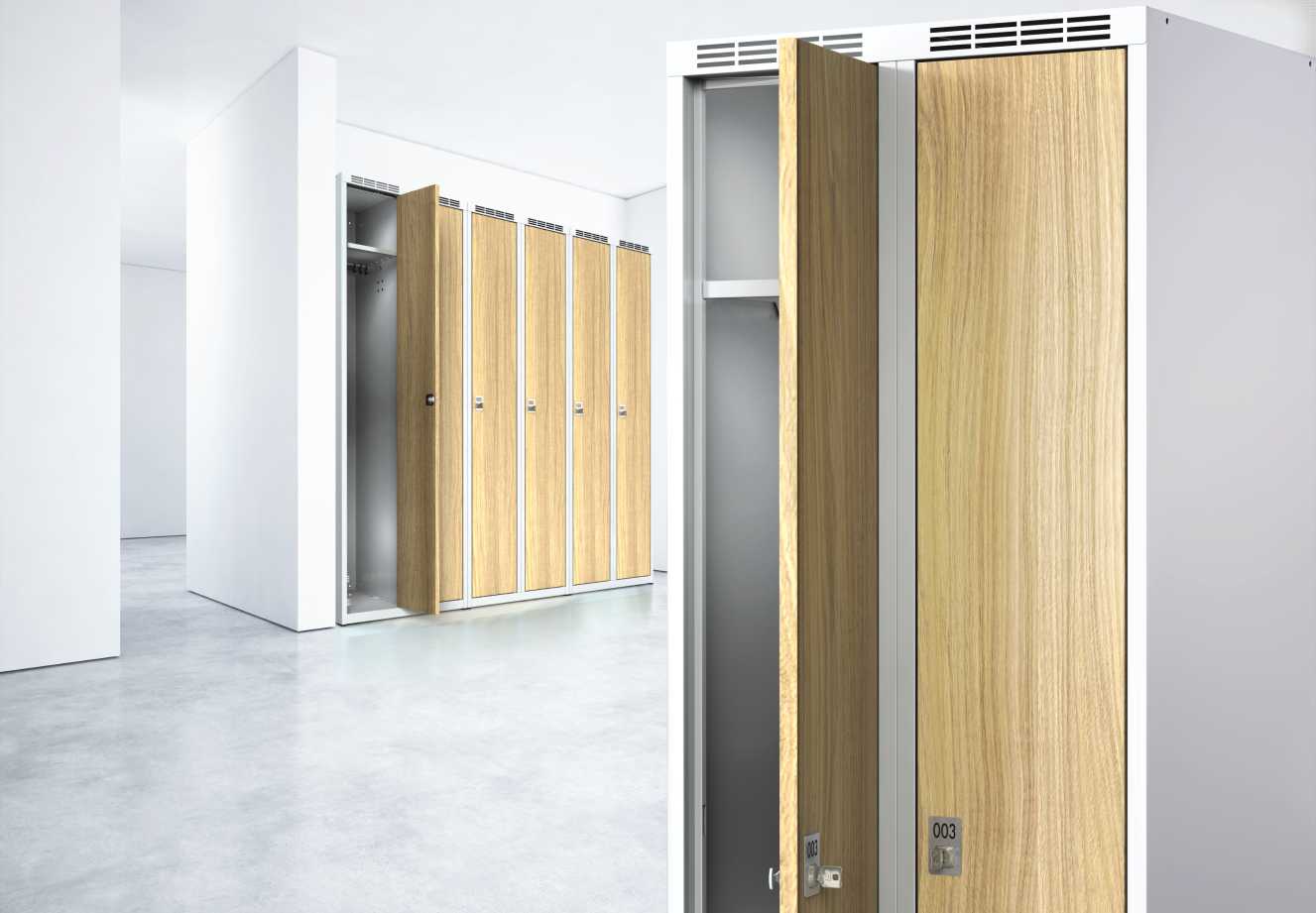

Product line ALDERA
The third generation of garment lockers with doors inserted into the frame structure of the body has undergone complete redesigning of all major structural elements. The metal parts are made of sheet steel with increased strength. The frame structure of the front part of the body is newly profiled. Thus it provides higher resistance to forcible pushing of the door into the body and, at the same time, forms a rigid support for the security lock bolt. The door structure has also been completely redesigned. There are new reinforcing elements, standard holes prepared for the installation of an opening angle limiter and damped closing mechanism.
Product line ALDERA
- Doors made of laminated chipboard with ABS edge
- Door bolt with a hook – protection against door crushing
- Doors hinged on massive metal pivots, max. opening angle 100°
- Hook for towel on dividing wall, not available for one-compartment lockers
- Shelf with surface carrying capacity 30 kg
- Clothes bar with carrying capacity 10 kg
- 3 plastic hooks with carrying capacity 4 kg in each compartment
- Mounting slots on sides of bodies for mounting into lines
- Mounting slots on back wall of the body
- Mounting slots in the bottom for mounting to the construction of a bench
- Preparation for additional mounting of a shelf in the bottom part of the body
- Preparation for additional mounting of feet or socle
All the important constructional items of the third generation of the cloakroom lockers with doors inserted in a frame construction have been completely reworked. Metal parts are made of steel sheets with higher solidity. The frame construction of the frontal part of the body is newly profiled and provides higher resistance against violent breaking the door into the body and makes a solid support for the safety door bolt. The door construction has been also completely reworked. They are newly furnished with reinforcing elements, they are standardly prepared for installation of opening limiters and damping elements.
Locking systems
● Cylindrical lock C1, 4000 combinations, a master key option.
● Turning security padlock cap OB1 is intended for a padlock of stirrup diameter 6 - 8 mm.
Locking system consists of a bolt with a safety hook which increases the resistance of the doors against violent breaking.
Extra charge equipment:
○ Coin deposit lock
○ Code mechanical lock
○ Code electronic lock
○ Online electronic systems
○ Chip electronic lock
The input material is steel plate or steel profiles. In painting line IDEAL-LINE there is applied
a Fe-phosphate layer and the segments are dried. It ensures a better adhesion of the powder coat to the base coat. The powder coat of the desired shade is then applied onto the segments in electrostatic field and then it is hardened at temperature of approx. 180 °C. The final coat is hygienic, flexible and scratch resistant.
Laminated doors are produced of laminated chipboard. The desk ́s limits are furnishd with ABS edge. This material is not suitable for moisty environments.
Surface treatment
The surface is treated with interior powder paint, which is applied in the electrostatic field to the surface of the product, pre-treated with iron phosphate. The resulting layer of varnish is harmless, flexible and mechanically resistant.
6.png "Paleta Aldera")
The laminated doors are made of laminated chipboard. The perimeter of the boards is fitted with an ABS edge. This material is not suitable for humid environments.
Gallery Aldera
